Model [GRF-SAC]
Product Name GRF Semi-Automatic Cremation System
Capacity 10-12 bodies per day
Fuel Available in Wood/CNG/Electric
PROJECT DETAILS
Project Setting up eco-friendly cremation machine (Incinerator and scrubber) using Gas
Proposed Location DELHI, India
Project Overview The future of cremation technology is here with the Green Revolution Foundation's (GRF) innovative Semi Automatic Cremation System. This eco-friendly system runs on Gas, Wood, or Electric, making it a sustainable choice for those looking to honor their loved ones while being kind to the planet.
In line with Indian traditions, GRF has developed a modern cremation system that’s rooted in rituals and is kind to the environment. This innovative approach not only helps protect our planet but also reduces deforestation and minimizes air and water pollution. It’s an affordable option for cremation that also boosts public welfare by creating sustainable job opportunities and enhancing the quality of life for local communities. Many respected sages, leaders from the religious community, and our honorable Prime Minister Shri Narendra Modi Ji have all shown their appreciation for this initiative. (Be sure to check out our presentation on video.)

Process

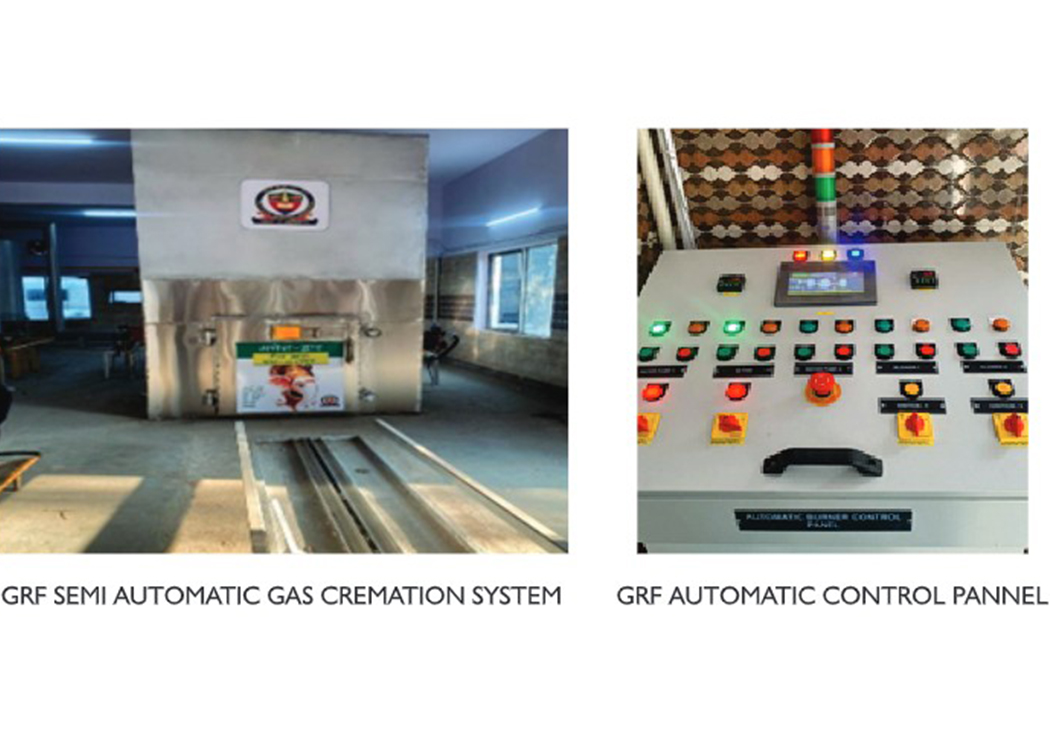

The environmentally friendly cremation machine has three key components: a scrubber made from high-grade stainless steel, an advanced automatic lifting mechanism, and a close-body incinerator chamber.
To carry out the cremation, the first step involves placing the deceased on a foundation where a lifting device will elevate them. Typically, the entire process takes between 45 to 90 minutes. Once the cremation is complete, the ashes (Phol) are given to a family member in water to perform the last rites.
The system can even run-on solar power support (Optional)
The pipe that leads to the wet scrubber, which helps filter out harmful gases by turning them into water, is where the flue gases are channeled. This process ensures that any leftover smoke is sent up the chimney while the remaining particles are cleaned up.

RAW MATERIAL DETAILS
S. No. Particular Description
1 Fuel Type Wood/GAS / Electric
2 Ash Generation From 5% to 6% (Approx) in accordance with fuel quantity
3 Power Rating 8 08 KW/08 KW/80 KW
4 Cremation Cost When you stack it up against traditional electric cremation methods, this budget-friendly technology can cut cremation costs by as much as 50%.
INCINERATOR (FEATURES AND SPECIFICATION)
S. No. Particular Description
1 Material Check out our Special Grade Stainless Steel Refractory Line Metal, designed with a robust thickness! It features a solid 304 stainless steel framework, ensuring a minimum thickness of 1 to 5 mm.
2 Cremation Time 30-90 minutes
3 Furnace Specification The dimensions are 11.5 feet in length, 6 feet in width, and 6 feet in height. To move the body inside the furnace, we used a trolley made from SS304 material, which was loaded manually.
4 Incinerating Chamber Dimensions Size: 08 ft(L) X 4.5 ft(W) X 4.5 ft(H)
5 Wet Scrubber Advanced Three Stage De-carbonization filtration Technology, Ss304, 3mm thick plate, Height 12.5 ft with stand, diameter 3 ft. Completely made up of Stainless Steel 304 Grade.
6 Door Front opening door 4ft x 3ft with hinges
7 Temperature in Chamber Primary Chamber Temperature 750 degree C
8 Machine Accessories Clean Out ports, packing support Grid, Strainer, Safety accessories, water level indicator, Inspection vent, Drain valve with ball valve, water controller valve. Thermocouple, Pressure Gauge,
9 Civil Work As per Guidelines proposed and required by the authority
10 Space Required 30 X 30 ft for One Incinerator
11 Blower (Optional) 3 hp power supply with very high RPM
12 Control Panel (Automatic) We supply one unit of scrubbing pumps ranging from 1.5 to 3 HP, along with one unit of ID fans that operate between 3 to 6 HP and come with timed control features. Additionally, an automatic control panel based on HMI and PLC, which also allows for manual operation, is required. Don't forget the sophisticated variable drives that utilize fans to help manage temperatures.
13 ID Fan 3-6 HP ID FAN FOR SUCTION OF SMOKE
14 Scrubber Efficiency As per the guidelines of CPCB
15 Burning Capacity 150-200 kg per hour
16 Operator Can be operated by semi-skilled/skilled labor
17 Emission As per DPCC/CPCB
18 Clean Outdoor Width maximum 5ft and height maximum Ift 5 inches
19 Front door frame 4 x 3.5 feet
20 Advance HMI and PLC control Introducing a fully automatic digital PLC control panel that comes with a built-in machine to display all parameters. It features a user-friendly one-touch operation system with a vibrant 7-inch touchscreen. The HMI is also equipped with data recipes, event logging, and event triggering capabilities.
21 Operating Voltage 415-440 V, 4.5-5 KW, 3 phase AC 50 C/S
22 Chimney As per CPCB standards, the 10-meter self-supporting chimney will have a base diameter of 1200 mm, tapering to 324 mm and finally 22 mm. It will be secured using high-tension half-threaded bolts with one spring washer and two plain washers. Foundation bolts will be 32 mm in diameter and 900 mm long. The structure includes a 10 mm steel core wire rope, aircraft light, earthing strip plates, ladder with platform, lightning arrestor, and other necessary accessories.
